sajūgi

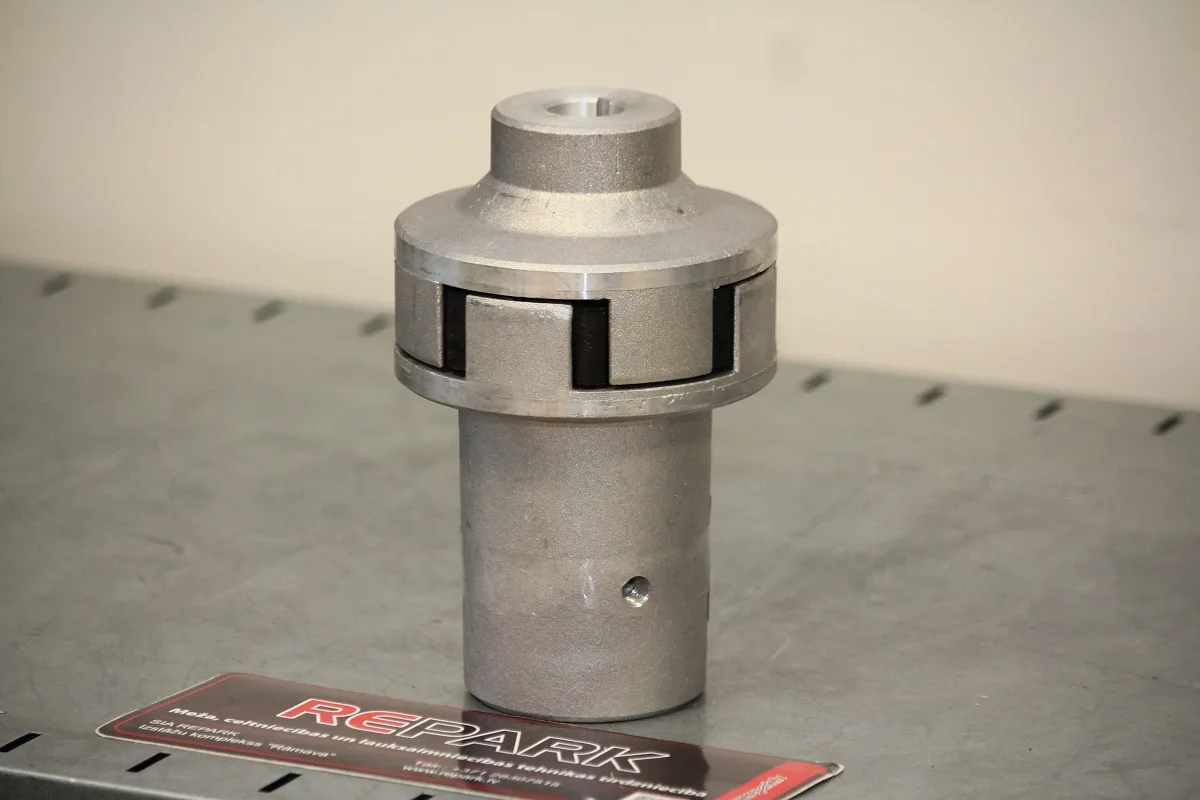

Savienojuma sajūgs

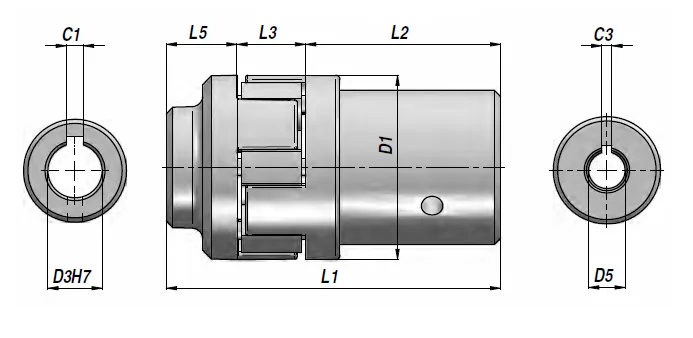

Sajūga rasējums


Tehniskie parametri

Modelis
D1
L1
Elektromotora jauda
D3
C1
L2
L3
Grupa.
D5
C3
L5
    Svars
HE2
43 mm
62.0 mm
0.25 - 0.37 kW
14 mm
5 mm
29.5 mm
16 mm
GR.1
1:8
2.4 mm
16.5 mm
0.12 kg
HE6
43 mm
78.0 mm
0.55 - 0.75 kW
19 mm
6 mm
45.5 mm
16 mm
GR.1
1:8
2.4 mm
16.5 mm
0.16 kg
HE46
63 mm
85.5 mm
0.55 - 0.75 kW
19 mm
6 mm
44.5 mm
19 mm
GR.2
1:8
3.2 mm
22.0 mm
0.32 kg

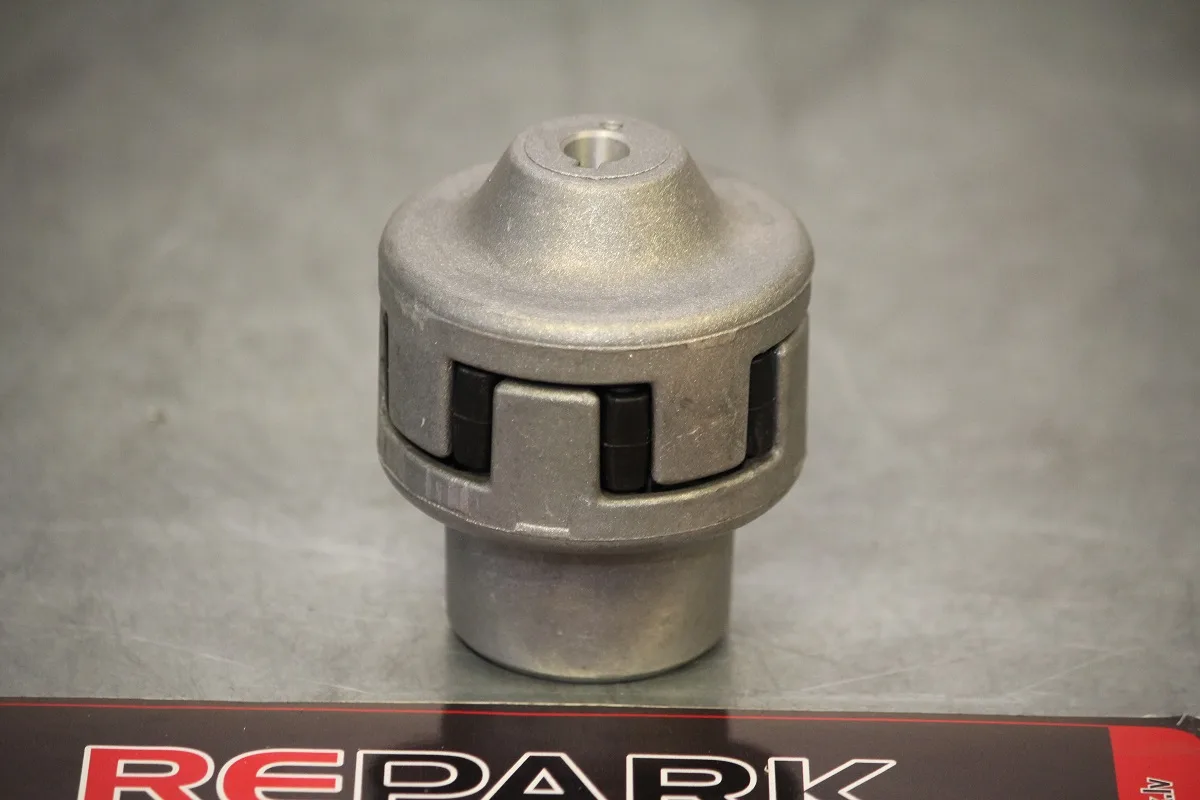

HE41
63 mm
78.0 mm
1.10 - 1.50 kW
24 mm
8 mm
36.0 mm
19 mm
GR.1
1:8
2.4 mm
23.0 mm
0.30 kg
HE14
63 mm
85.5 mm
1.10 - 1.50 kW
24 mm
8 mm
44.5 mm
19 mm
GR.2
1:8
3.2 mm
22.0 mm
0.34 kg

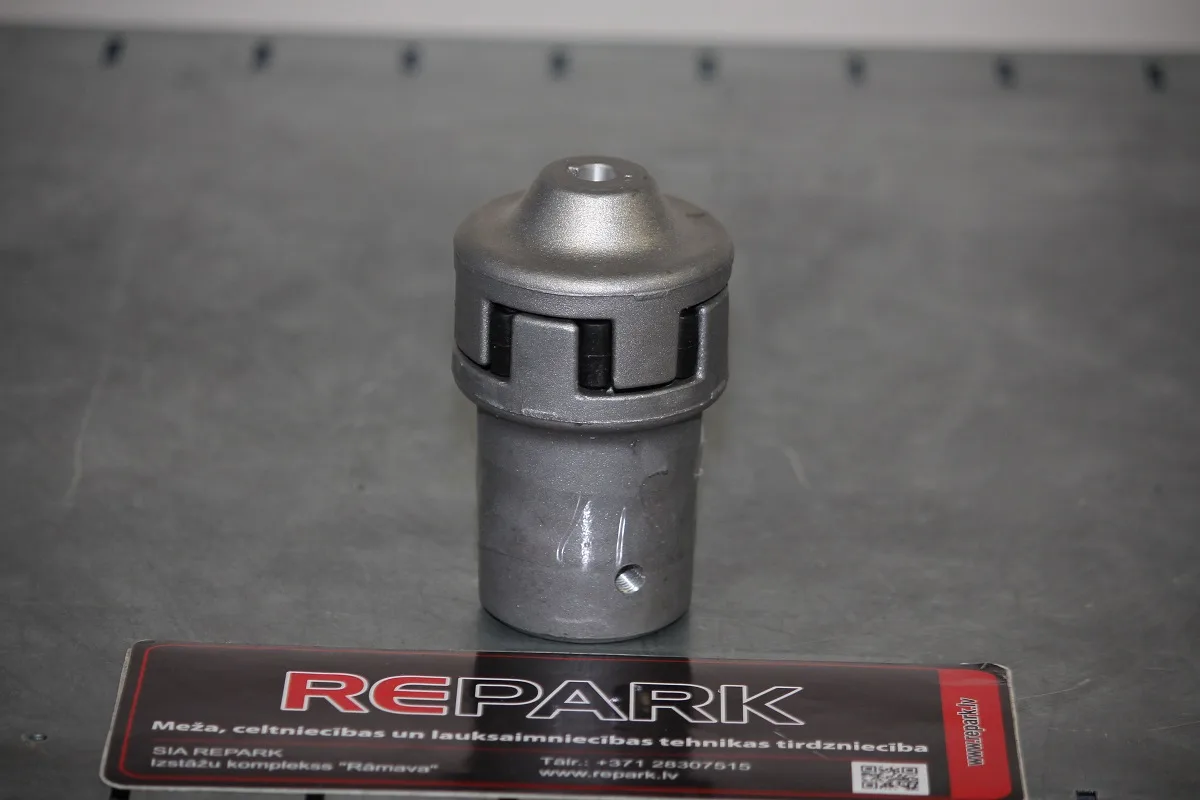

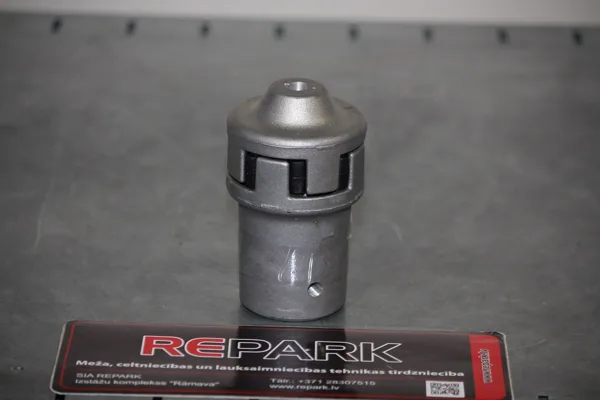

HE16
63 mm
106.5 mm
2.20 - 4 kW
28 mm
8 mm
64.5 mm
19 mm
GR.1
1:8
2.4 mm
23.0 mm
0.43 kg
HE19
63 mm
105.5 mm
2.20 - 4 kW
28 mm
8 mm
64.5 mm
19 mm
GR.2
1:8
3.2 mm
22.0 mm
0.44 kg
HE48
63 mm
119.5 mm
2.20 - 4 kW
28 mm
8 mm
64.5 mm
19 mm
GR.3
1:8
4.0 mm
36.0 mm
0.48 kg

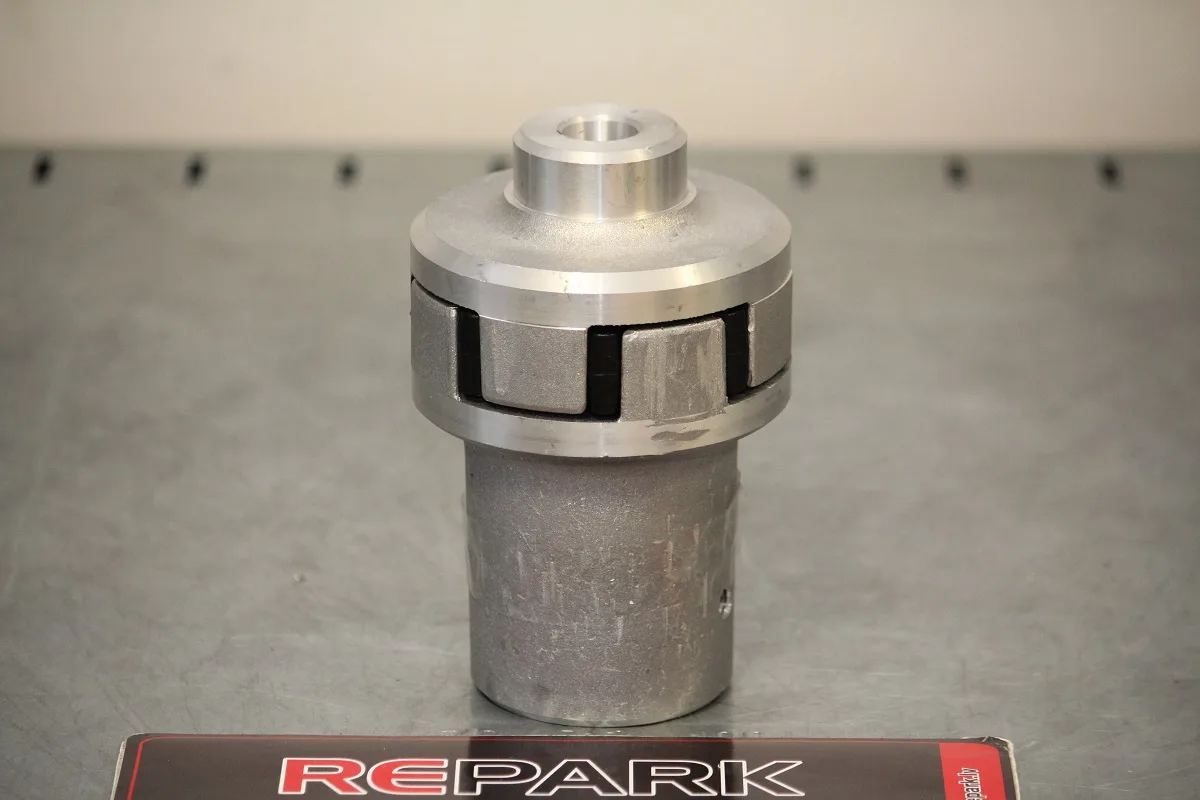

HE28
86 mm
134.0 mm
5.50 - 7.50 kW
38 mm
10 mm
79.0 mm
23 mm
GR.2
1:8
3.2 mm
32.0 mm
0.86 kg

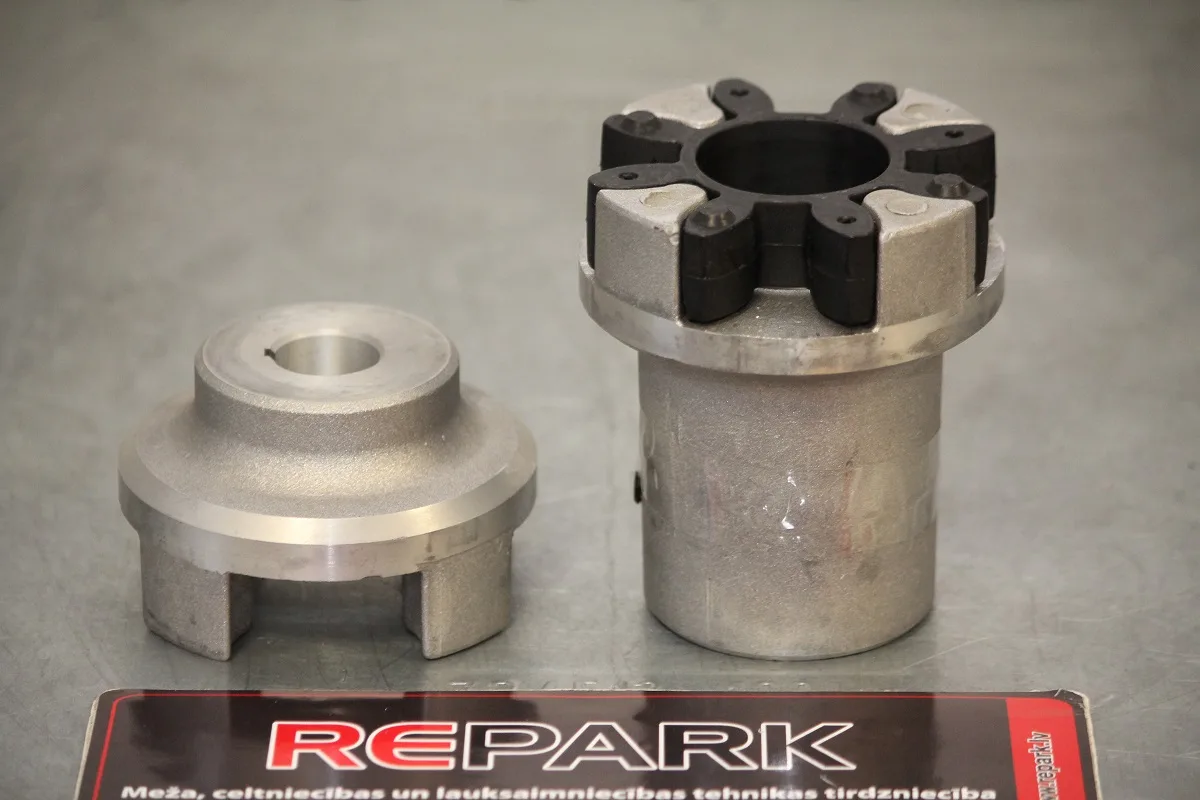

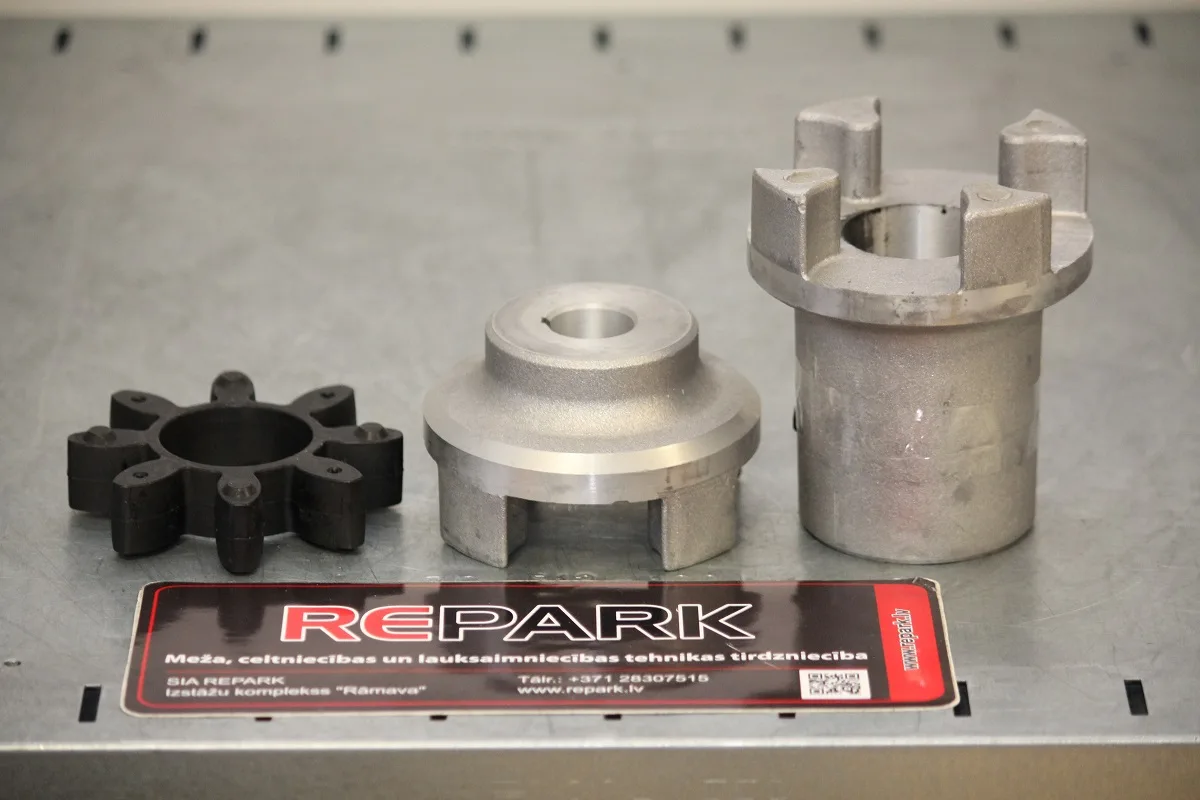

HE30
86 mm
134.0 mm
5.50 - 7.50 kW
38 mm
10 mm
79.0 mm
23 mm
GR.3
1:8
4.0 mm
32.0 mm
0.93 kg
HE32
110 mm
174.0 mm
11 - 15 kW
42 mm
12 mm
105.0 mm
27 mm
GR.2
1:8
3.2 mm
42.0 mm
1.54 kg
HE34
110 mm
174.0 mm
11 - 15 kW
42 mm
12 mm
105.0 mm
27 mm
GR.3
1:8
4.0 mm
42.0 mm
1.57 kg
HE37
110 mm
174.0 mm
18.5 - 22 kW
48 mm
14 mm
105.0 mm
27 mm
GR.3
1:8
4.0 mm
42.0 mm
1.61 kg
