Plūsmas regulatori

Tehniskie parametri VRFB 90

Modelis
A (BSP)
B (BSP)
Max. plūsmas
Max. spiediens
L
ØD
Vītne (F)
H
S
Svars
VRFB

90 010

1/4''
1/4''
30 l/min
350 bar
58 mm
30 mm
M25x1.5
82 mm
25 mm
0,34 kg
VRFB

90 020

3/8''
3/8''
40 l/min
350 bar
58 mm
30 mm
M25x1.5
82 mm
25 mm
0,34 kg
VRFB

90 030

1/2''
1/2''
50 l/min
350 bar
64 mm
30 mm
M25x1.5
88 mm
30 mm
0.43 kg
VRFB

90 040

3/4''
3/4''
80 l/min
320 bar
89 mm
42 mm
M35x1.5
116 mm
40 mm
1.13 kg
VRFB

90 050

1''
1''
110 l/min
300 bar
89 mm
42 mm
M35x1.5
116 mm
40 mm
1.00 kg


VEIKALS CENAS

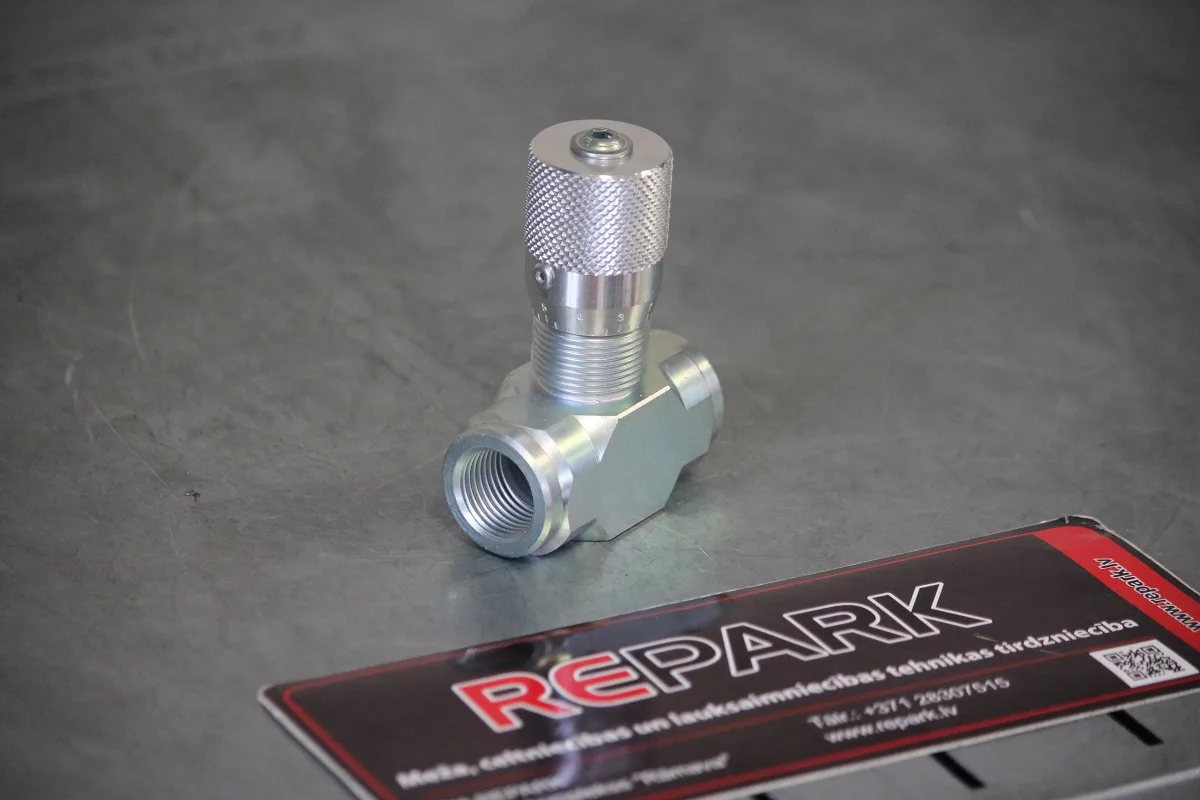

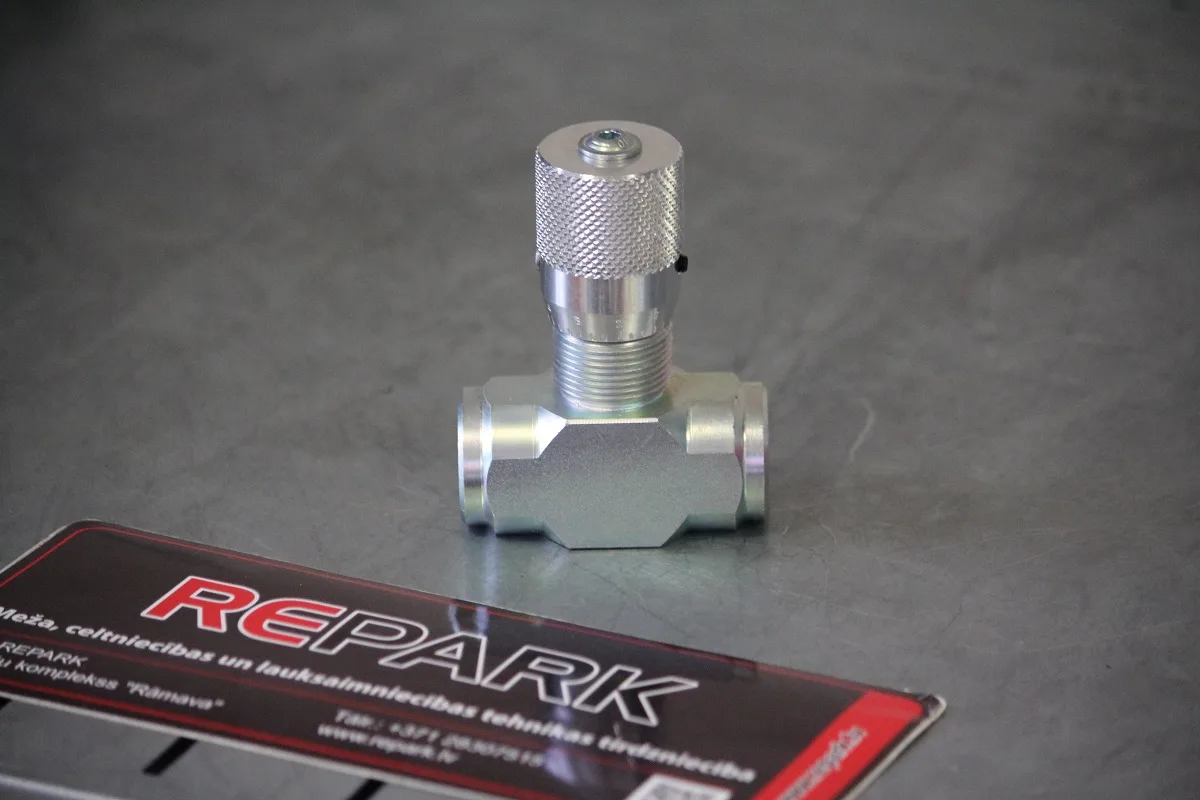

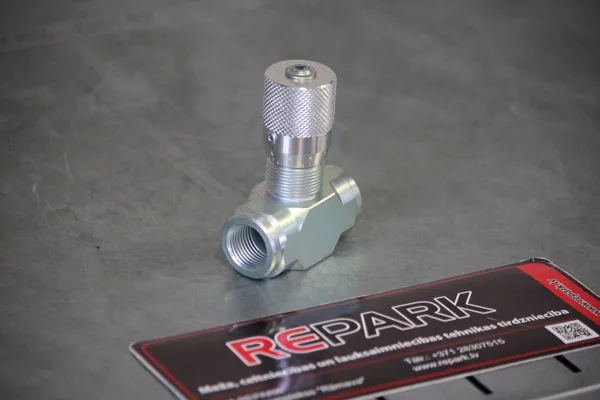

VRFB 90 Plūsmas regulators


Tehniskie parametri VRFC

Modelis
A (BSP)
B (BSP)
Max. Plūsma

A>B

Max. Plūsma

B>A

Max. spiediens
L
CH
CH1
Svars
VRFC 010
1/4''
1/4''
30 l/min
30 l/min
350 bar
66.0 mm
32 mm
22 mm
0.30 kg
VRFC 020
3/8''
3/8''
40 l/min
50 l/min
350 bar
77.5 mm
38 mm
26 mm
0.48 kg
VRFC 030
1/2''
1/2''
50 l/min
80 l/min
350 bar
83.0 mm
41 mm
30 mm
0.59 kg
VRFC 040
3/4''
3/4''
80 l/min
110 l/min
300 bar
104.0 mm
55 mm
38 mm
1.34 kg
VRFC 050
1''
1''
110 l/min
160 l/min
250 bar
118.5 mm
65 mm
46 mm
2.15 kg
VRFC 060
1''1/4
1''1/4
150 l/min
210 l/min
230 bar
135.0 mm
80 mm
55 mm
3.31 kg
VRFC 070
1''1/2
1''1/2
210 l/min
280 l/min
230 bar
149.5 mm
90 mm
62 mm
4.76 kg


VEIKALS CENAS

VRFC Plūsmas regulators




Tehniskie parametri

Modelis
E-P-T

(BSP)

Max. plūsma

E>P

Max. Spiediens
L
L1
L2
L3
L4
H1
H
S
Svars
RFP 33/8''60/50 l/min
350 bar
90 mm
118 mm25 mm32 mm20 mm40 mm90 mm35 mm2.17 kg
RFP 3
1/2''80/60 l/min350 bar
90 mm118 mm25 mm32 mm20 mm40 mm90 mm35 mm2.10 kg
RFP 3
3/4''120/100 l/min350 bar
90 mm122 mm27 mm36 mm19 mm40 mm102 mm50 mm
3.35 kg


VEIKALS CENAS

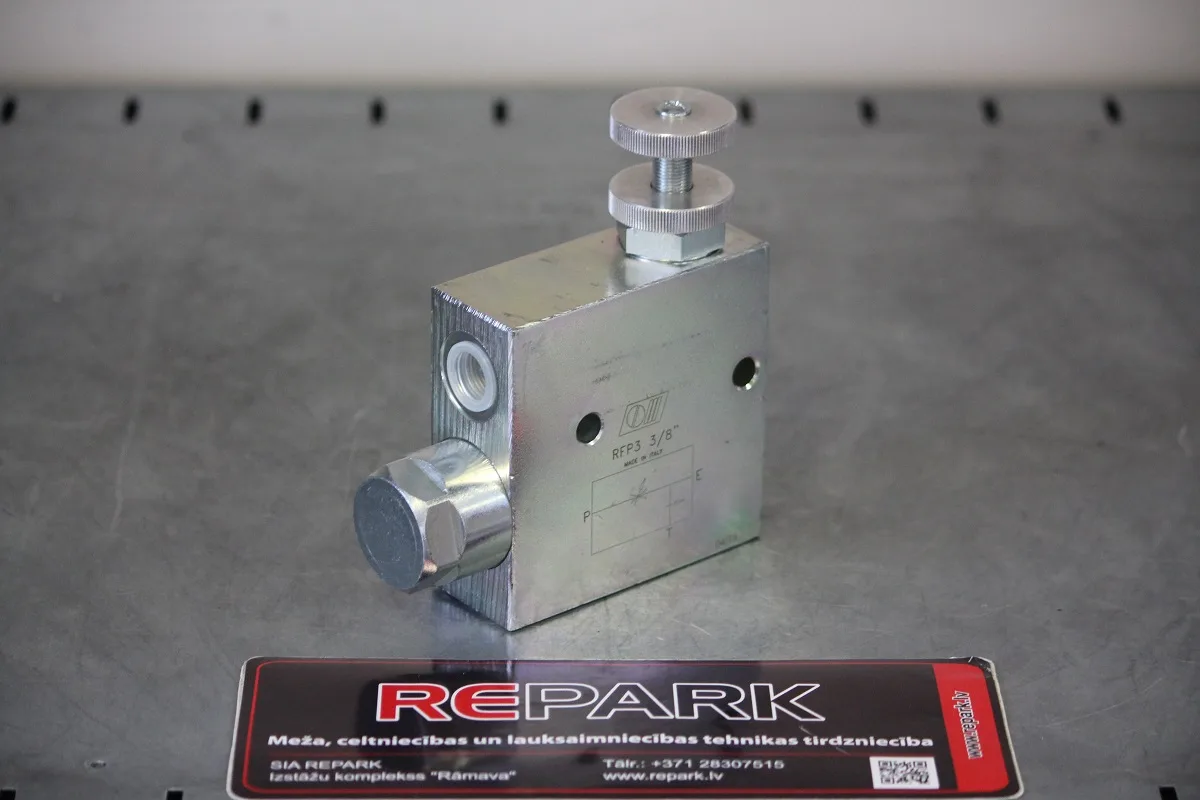

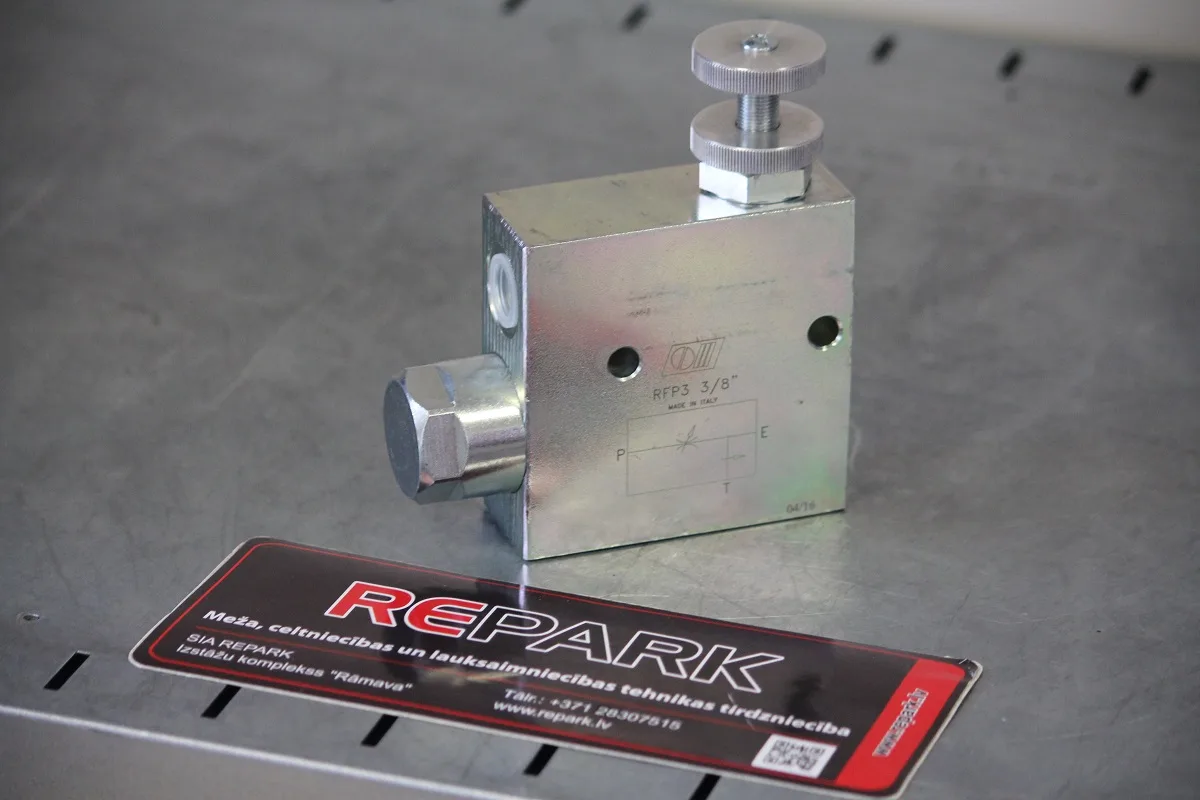

RFP 3 plūsmas regulators
